1.Position on wire 2.Squeeze into with plier 3.Push into hole
Mounting Holes

. Material : Nylon PA 66 ( UL 94V-2 ).
. Colour : Black.
. Application : It is designed to hold the cord firmly and can be assembled into panel hole securely by AVC Assembly Tool AT-100 hand pliers or other available tools.
To protect cable against forces of flex, pull, push and twist.

       Unit : mm

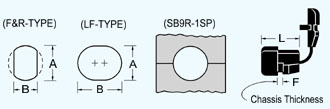

Key-Contour Style
Cat. No.
UL Wires

Accommodated
Approx.

wire Size
Mounting Holes
 Part Length
L
Thickness

F
Approved
Std. Pkg.
pcs
A
B
UL
E88343
CSA
57957
F - TYPE
(FLAT)
SB2F-1
SPT-1 2C#18
2.8 X 5.3
  9.5
  8.7
10.5
0.5~1.7
100
&
1000
SB2F-3
1.8~3.2
-
SB3F-0
SPT-1 2C#18
3.0 X 5.6
11
  9.9
10.3
0.4~0.8
SB3F-1
0.5~1.8
SB3F-2
1.9~2.6
SB4F-1
SPT-1 3C#18
SPT-2 2C#18
SPT-2 2C#16
3.0 X 7.6
3.8 X 7.1
4.1 X 7.6
12.7
11.8
10.8
0.5~1.7
SB41-1
12.5
0.5~1.6
-
SB4F-2
1.8~2.6
SB5F-1
SPT-2 2C#16
SPT-3 2C#18
4.1 X 7.6
4.8 X 8.9
14.3
13.2
15.4
0.5~1.7
SB5F-3
1.8~3.5
-
LF - TYPE
SB6LF-2
300 OHM
1.5 X 10.2
  9.5
16
11.7
1.0~2.7
R - TYPE
ROUND
SB5M-1
SVT 2C#18
5.5Ø~6.3Ø
12.7
11.5
11.1
0.5~1.6
-
SB5M-2
1.7~2.6
-
SBR5-1
SVT 2C#18
SVT 3C#18
6.2Ø~7.4Ø
 11.8
0.5~1.8
SBR5-2
1.9~2.8
SB5P-2
SJT 2C#18
6.8Ø~7.8Ø
12.7
11.8
12.5
0.8~2.6
-
SB6N-4
SJT 3C#18
7.4Ø~8.2Ø
15.9
14
15
0.5~1.8
SB6R-3
1.9~3.2
SB7R-1
SJT 3C#16
8.2Ø~9.2Ø
0.5~1.8
SB7R-3
1.9~3.2
SB8R-1
SJT 3C#14
9.2Ø~10.5Ø
19
16.5
18.5
 0.5~1.8
100
11Ø
19.8
SB8R-3
9.2Ø~10.5Ø
19
 1.8~3.5 -
11Ø
19.8
SB9R-2
SJT 3C#12
12Ø~15.2Ø
22.2
21.3
20
0.8~2.5
-
SB10R2-7
SJT 3C#10
15.2Ø~16.3Ø
28
25.4
25.2
1.2~7.0
-
17.5Ø
30.2
FOR POWER SUPPLY
SB9R-1SP
#18 20pcs~30pcs
11Ø~15Ø
19
19
17.5
0.5~1.6
-
-
